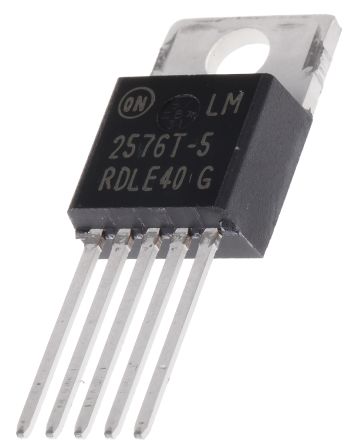

ON Semiconductor, LM2576T-005G Step-Down Switching Regulator 3A, 4.75 → 5.25 V 5-Pin, TO-220, Buck Controller [LM2576T-005G]; 101-8273
0₫
Mã kho: 1018273
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 5.25 V |
| Regulator Function | Buck Controller, Inverting |
| Minimum Output Voltage | 4.75 V |
| Minimum Input Voltage | 7 V |
| Maximum Input Voltage | 40 V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Width | 4.57mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 52 kHz |
| Dimensions | 10.54 x 4.57 x 9.27mm |
| Height | 9.27mm |
| Length | 10.54mm |
