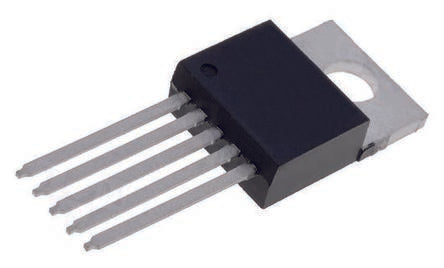

ON Semiconductor, LM2575T-15G Switching Regulator 1A 5-Pin, TO-220 [LM2575T-15G]; 145-3373
0₫
Mã kho: 1453373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 15 V |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 4.75 V |
| Maximum Input Voltage | 40 V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Dimensions | 10.541 x 4.572 x 9.271mm |
| Length | 10.54mm |
| Width | 4.572mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Efficiency | 0.88 |
| Maximum Switching Frequency | 52 kHz |
| Height | 9.271mm |
