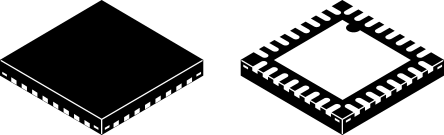

ON Semiconductor, ADP3211AMNR2G Step-Down Switching Regulator 10A Adjustable, 1.1 → 10 V 32-Pin, QFN [ADP3211AMNR2G]; 791-9633
0₫
Mã kho: 7919633
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 10A |
| Maximum Output Voltage | 10 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.1 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 19 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 32 |
| Package Type | QFN |
| Switching Regulator | Yes |
| Line Regulation | 0.0005 |
| Width | 5mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +100 °C |
| Maximum Switching Frequency | 3 MHz |
| Length | 5mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 5 x 5 x 0.95mm |
