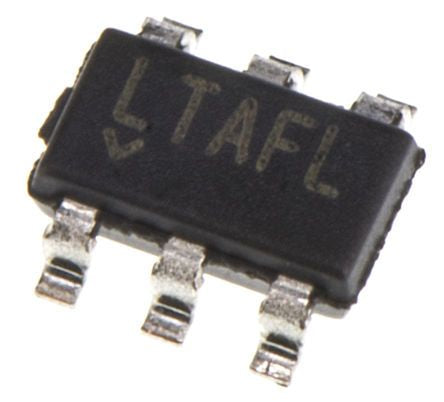

Monolithic Power Systems (MPS), MP1470GJ-P Sync Buck Converter 2A Adjustable, Minimum of 0.8 V 6-Pin, TSOT-23 [MP1470GJ-P]; 917-5816
0₫
Mã kho: 9175816
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 2A |
Regulator Function | Step Down |
Minimum Output Voltage | 0.8 V |
Minimum Input Voltage | 4.7 V |
Maximum Input Voltage | 16 V |
Output Type | Adjustable |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Pin Count | 6 |
Package Type | TSOT-23 |
Switching Regulator | Yes |
Length | 3mm |
Dimensions | 3 x 1.7 x 0.9mm |
Maximum Operating Temperature | +125 °C |
Height | 0.9mm |
Maximum Switching Frequency | 580 kHz |
Minimum Operating Temperature | -40 °C |
Width | 1.7mm |
