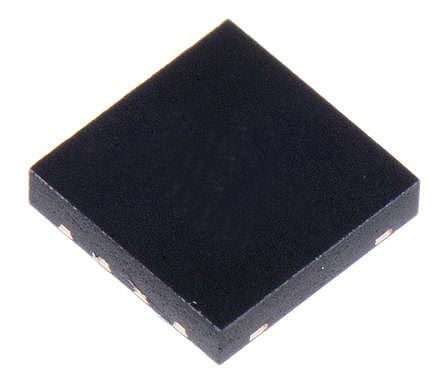

Intersil, ISL85412FRTZ-T7A Step-Down Switching Regulator 150mA Adjustable, 0.6 → 34 V 8-Pin, TDFN [ISL85412FRTZ-T7A]; 121-7277
by Intersil
0₫
Mã kho: 1217277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 150mA |
| Maximum Output Voltage | 34 V |
| Regulator Function | Synchronous Buck Controller |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 3.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | TDFN |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Length | 3mm |
| Width | 3mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 784 kHz |
| Height | 0.75mm |
| Dimensions | 3 x 3 x 0.75mm |
