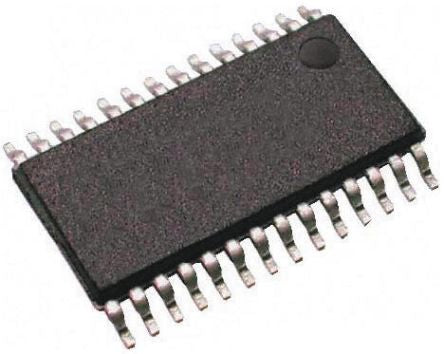

Intersil, EL7554IREZ Step-Down Switching Regulator 4A Adjustable, Minimum of 0.8 V 28-Pin, HTSSOP [EL7554IREZ]; 518-277
by Intersil
0₫
Mã kho: 518277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 4A |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 6 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 28 |
| Package Type | HTSSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.005 |
| Maximum Switching Frequency | 1000 kHz |
| Efficiency | 0.96 |
| Minimum Operating Temperature | -40 °C |
| Width | 4.4mm |
| Maximum Operating Temperature | +85 °C |
| Length | 9.7mm |
| Dimensions | 9.7 x 4.4 x 0.9mm |
| Height | 0.9mm |
