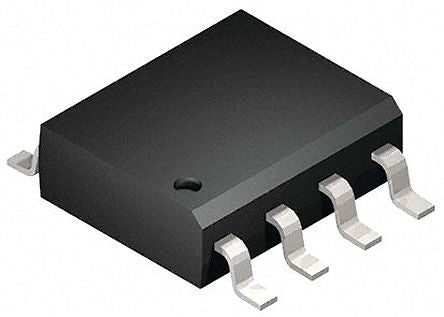

Infineon, IFX91041EJV33XUMA1 Step-Down Switching Regulator 1.8A 8-Pin, DSO-8-27 [IFX91041EJV33XUMA1]; 178-7367
by Infineon
0₫
Mã kho: 1787367
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1.8A |
| Maximum Output Voltage | 3.43 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 3.17 V |
| Minimum Input Voltage | 4.75 V |
| Maximum Input Voltage | 45 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | DSO-8-27 |
| Switching Regulator | Yes |
| Width | 3.9mm |
| Minimum Operating Temperature | -40 °C |
| Height | 1.6mm |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 4.9 x 3.9 x 1.6mm |
| Length | 4.9mm |
| Maximum Switching Frequency | 420 kHz |
