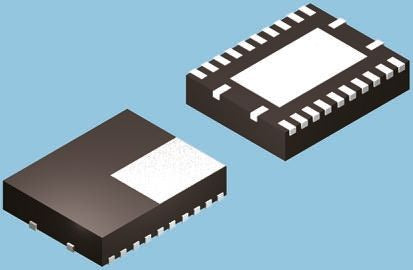

EXAR, SP7651ER-L/TR Step-Down Switching Regulator Adjustable 26-Pin, DFN [SP7651ER-L/TR]; 177-7102
by EXAR
0₫
Mã kho: 1777102
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 20 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 26 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Length | 7mm |
| Width | 4mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95mm |
| Dimensions | 7 x 4 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 990 kHz |
