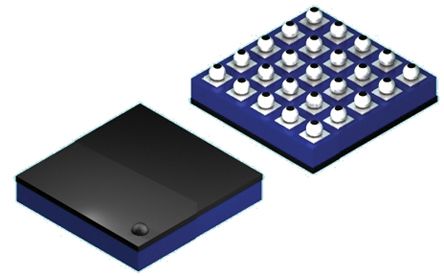

Step-Down Switching Regulator [LTM4624EY#PBF]; 158-0423
0₫
Mã kho: 1580423
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 4A |
| Maximum Output Voltage | 5.5 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 14 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 25 |
| Package Type | BGA |
| Switching Regulator | Yes |
| Line Regulation | 0.15 %/V |
| Load Regulation | 0.015 |
| Maximum Operating Temperature | +125 °C |
| Length | 6.25mm |
| Maximum Switching Frequency | 1 MHz |
| Dimensions | 6.25 x 6.25 x 4.51mm |
| Minimum Operating Temperature | -40 °C |
| Width | 6.25mm |
| Height | 4.51mm |
