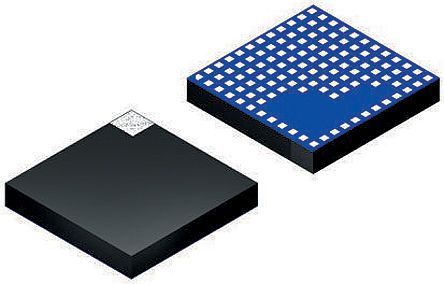

Linear Technology, LTM4613IV#PBF DC-DC Converter 8A Adjustable, 3.3 → 15 V 133-Pin, LGA [LTM4613IV#PBF]; 851-6749
0₫
Mã kho: 8516749
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 8A |
| Maximum Output Voltage | 15 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 3.3 V |
| Minimum Input Voltage | 5 V |
| Maximum Input Voltage | 36 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 133 |
| Package Type | LGA |
| Switching Regulator | Yes |
| Line Regulation | 0.003 |
| Load Regulation | 0.0075 |
| Width | 15mm |
| Dimensions | 15 x 15 x 4.42mm |
| Maximum Switching Frequency | 600 kHz |
| Maximum Operating Temperature | +125 °C |
| Length | 15mm |
| Height | 4.42mm |
| Minimum Operating Temperature | -55 °C |
