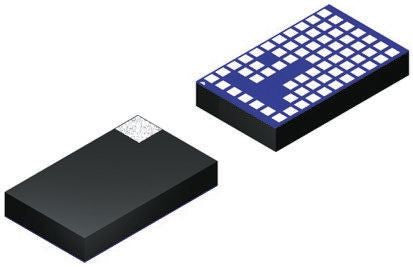

Linear Technology, LTM4608IV#PBF Step-Down Switching Regulator 8A Adjustable, 0.6 → 5 V 68-Pin, LGA [LTM4608IV#PBF]; 711-2529
0₫
Mã kho: 7112529
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 8A |
| Maximum Output Voltage | 5 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 2.375 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 68 |
| Package Type | LGA |
| Switching Regulator | Yes |
| Line Regulation | 0.2 %/V |
| Load Regulation | 0.0075 |
| Width | 9mm |
| Length | 15mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 15 x 9 x 2.95mm |
| Efficiency | 0.95 |
| Height | 2.95mm |
| Maximum Switching Frequency | 1700 kHz |
| Minimum Operating Temperature | -40 °C |
