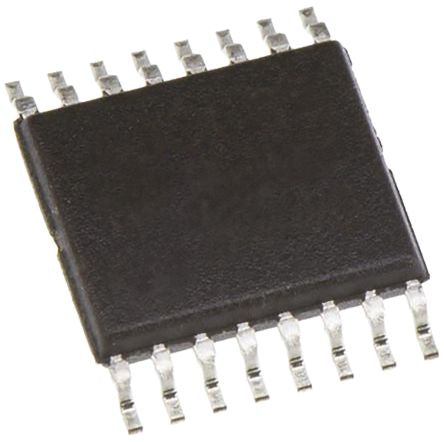

60V Current Mode Regulator Controller [LTC3812EFE-5#PBF]; 155-7487
0₫
Mã kho: 1557487
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 60 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 4.35 V |
| Maximum Input Voltage | 14 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | TSSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.0001 |
| Length | 5.1mm |
| Maximum Operating Temperature | +125 °C |
| Width | 4.5mm |
| Height | 0.95mm |
| Maximum Switching Frequency | 250 kHz |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
