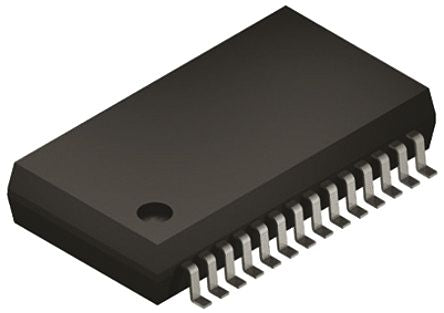

Linear Technology, LTC3810EG#PBF Switching Regulator 2A Adjustable, 0.8 → 100 V 28-Pin, SSOP [LTC3810EG#PBF]; 822-5692
0₫
Mã kho: 8225692
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 100 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 6.35 V |
| Maximum Input Voltage | 14 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 28 |
| Package Type | SSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.0001 |
| Height | 1.5mm |
| Dimensions | 10.5 x 8.2 x 1.5mm |
| Minimum Operating Temperature | -40 °C |
| Length | 10.5mm |
| Maximum Operating Temperature | +125 °C |
| Width | 8.2mm |
| Maximum Switching Frequency | 250 kHz |
