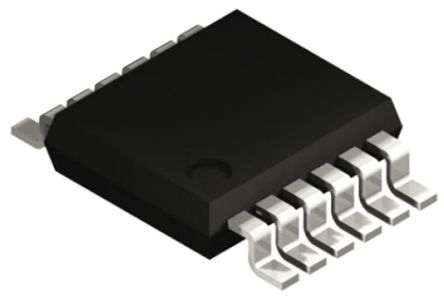

Linear Technology, LTC3630EMSE#PBF DC-DC Converter 500mA, 0.8 to 65 V 16-Pin, MSOP [LTC3630EMSE#PBF]; 884-2638
0₫
Mã kho: 8842638
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 500mA |
| Maximum Output Voltage | 65 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 65 V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.001 %/V |
| Length | 4.04mm |
| Dimensions | 4.039 x 3 x 0.8mm |
| Width | 3mm |
| Height | 0.8mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 250 kHz |
