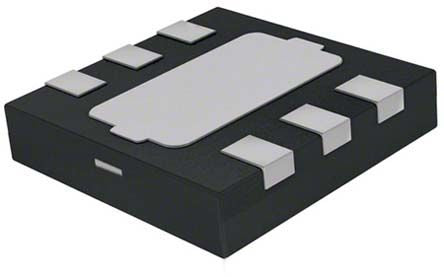

Linear Technology, LTC3621EDCB#TRMPBF Synchronous Buck Regulator 1A Adjustable 6-Pin, DFN [LTC3621EDCB#TRMPBF]; 151-3318
0₫
Mã kho: 1513318
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 17 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.6 V |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 17 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.015 %/V |
| Load Regulation | 0.001 |
| Maximum Operating Temperature | +125 °C |
| Length | 2mm |
| Efficiency | 0.95 |
| Dimensions | 2 x 3 x 0.7mm |
| Maximum Switching Frequency | 1 MHz |
| Minimum Operating Temperature | -40 °C |
| Height | 0.7mm |
| Width | 3mm |
