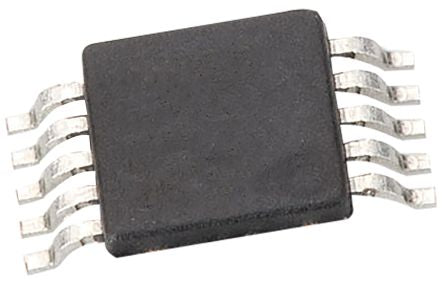

Linear Technology, LTC3419EMS#PBF Step-Down Switching Regulator Dual 600mA Adjustable 10-Pin, MSOP [LTC3419EMS#PBF]; 423-579
0₫
Mã kho: 423579
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 600mA |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 2.5 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Pin Count | 10 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.5 %/V |
| Load Regulation | 0.005 |
| Dimensions | 3 x 3 x 0.86mm |
| Efficiency | 0.96 |
| Height | 0.86mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Switching Frequency | 2700 kHz |
| Length | 3mm |
| Maximum Operating Temperature | +125 °C |
| Width | 3mm |
