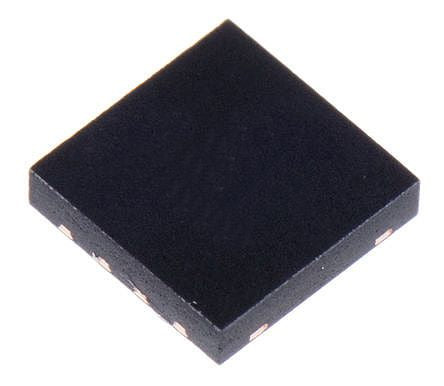

Linear Technology, LTC3409EDD#PBF DC-DC Converter 600mA Adjustable 8-Pin, DFN [LTC3409EDD#PBF]; 851-6736
0₫
Mã kho: 8516736
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 600mA |
| Regulator Function | Buck Regulator |
| Minimum Output Voltage | 0.5977 V |
| Minimum Input Voltage | 1.6 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.4 %/V |
| Load Regulation | 0.005 |
| Height | 0.7mm |
| Dimensions | 3 x 3 x 0.7mm |
| Width | 3mm |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Maximum Switching Frequency | 3 MHz |
| Minimum Operating Temperature | -40 °C |
