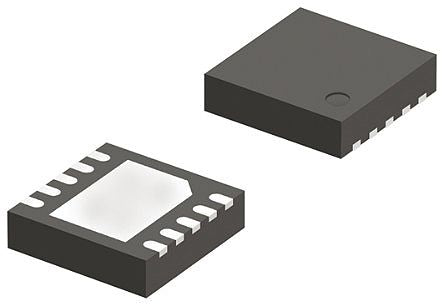

Linear Technology, LTC3388EDD-3#PBF DC-DC Converter 50mA 10-Pin, DFN [LTC3388EDD-3#PBF]; 851-4649
0₫
Mã kho: 8514649
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 50mA |
| Maximum Output Voltage | 3 V |
| Regulator Function | Step Down |
| Minimum Input Voltage | 2.7 V |
| Maximum Input Voltage | 20 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | DFN |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.7mm |
| Width | 3mm |
| Dimensions | 3 x 3 x 0.7mm |
| Length | 3mm |
