Step-Down Switching Regulator [LT8612EUDE#PBF]; 158-0372
0₫
Mã kho: 1580372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 6A |
| Maximum Output Voltage | 5 V |
| Regulator Function | Step Down |
| Minimum Input Voltage | 3.4 V |
| Maximum Input Voltage | 42 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 28 |

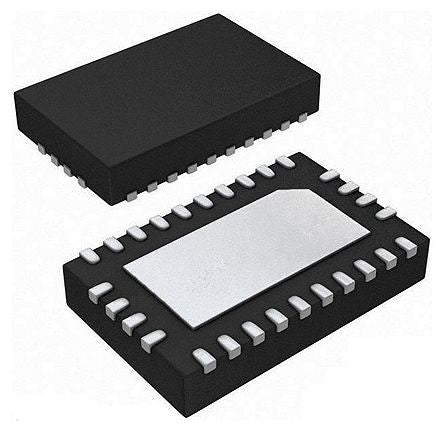

| Package Type | QFN |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Efficiency | 0.95 |
| Height | 0.7mm |
| Length | 3mm |
| Maximum Switching Frequency | 2.2 MHz |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 3 x 6 x 0.7mm |
| Minimum Operating Temperature | -40 °C |
| Width | 6mm |
