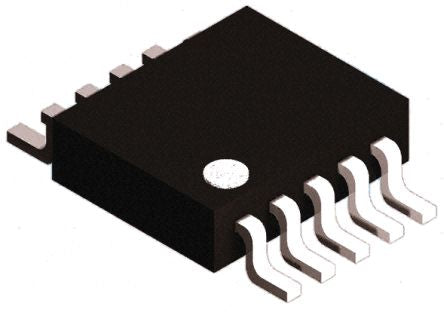

Linear Technology, LT8609EMSE#PBF Step Down DC-DC Converter 2A Adjustable 10-Pin, MSOP [LT8609EMSE#PBF]; 164-6063
0₫
Mã kho: 1646063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 5 V |
| Minimum Output Voltage | 0.78 V |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 42 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.04 %/V |
| Dimensions | 3 x 3 x 0.86mm |
| Efficiency | 0.93 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 3mm |
| Maximum Switching Frequency | 2.2 MHz |
| Height | 0.86mm |
| Width | 3mm |
