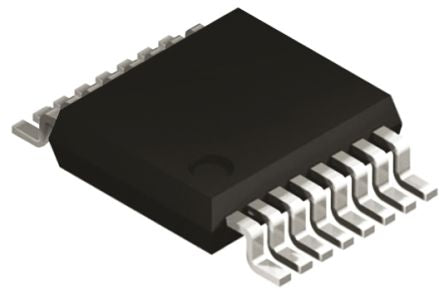

62V 350mA Step-Down Regulator 2.5uA [LT3990EMSE#PBF]; 155-7577
0₫
Mã kho: 1557577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 350mA |
| Maximum Output Voltage | 5 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 1.195 V |
| Minimum Input Voltage | 4.2 V |
| Maximum Input Voltage | 62 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Maximum Switching Frequency | 2.76 MHz |
| Dimensions | 4.039 x 3 x 0.86mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.86mm |
| Length | 4.04mm |
| Maximum Operating Temperature | +125 °C |
| Width | 3mm |
