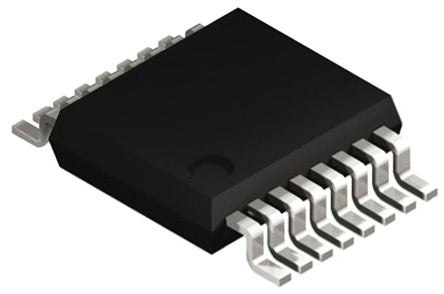

LT3988,DC-DC Step Down Regulator,MSOP16 [LT3988IMSE#PBF]; 155-9340
0₫
Mã kho: 1559340
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 1A |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.74 V |
| Minimum Input Voltage | 4.1 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Pin Count | 16 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Dimensions | 4.039 x 3 x 0.86mm |
| Length | 4.04mm |
| Width | 3mm |
| Height | 0.86mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 2.15 MHz |
