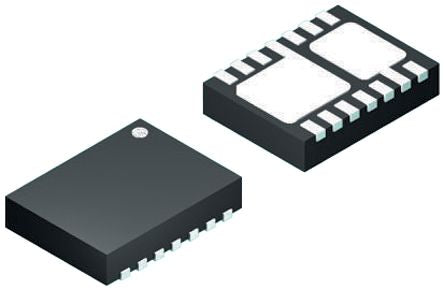

Linear Technology, LT3980IDE#PBF DC-DC Converter 2A Adjustable 14-Pin, DFN [LT3980IDE#PBF]; 851-4699
0₫
Mã kho: 8514699
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.79 V |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 58 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 14 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Height | 0.7mm |
| Dimensions | 4 x 3 x 0.7mm |
| Length | 4mm |
| Width | 3mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 2.55 MHz |
| Minimum Operating Temperature | -40 °C |
