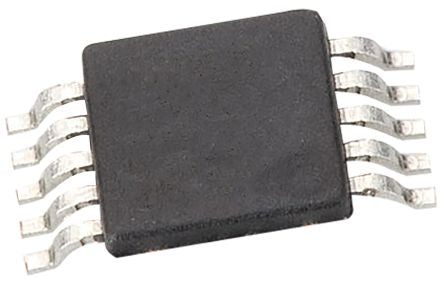

42V 750mA Buck Regulator 2.5uA MSOP10EP [LT3973EMSE#PBF]; 155-6737
0₫
Mã kho: 1556737
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 750mA |
| Maximum Output Voltage | 14 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.195 V |
| Minimum Input Voltage | 4.2 V |
| Maximum Input Voltage | 42 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Maximum Operating Temperature | +125 °C |
| Length | 3mm |
| Height | 0.86mm |
| Maximum Switching Frequency | 2.58 MHz |
| Dimensions | 3 x 3 x 0.86mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3mm |
