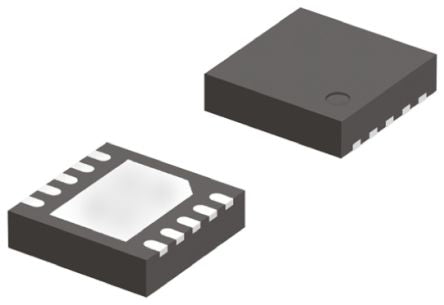

Linear Technology, LT3680IDD#PBF Switching Regulator 3.5A Adjustable, 0.79 → 30 V 10-Pin, DFN [LT3680IDD#PBF]; 786-9597
0₫
Mã kho: 7869597
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3.5A |
| Maximum Output Voltage | 30 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 0.79 V |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 36 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.01 %/V |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.7mm |
| Width | 3mm |
| Height | 0.7mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 2.76 MHz |
| Length | 3mm |
