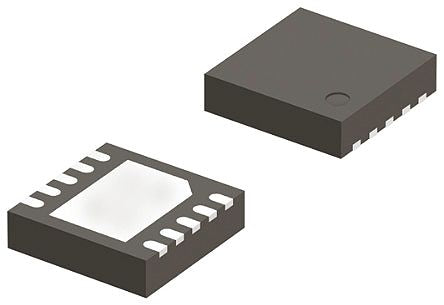

36V 2A 2.8MHz Step-Down Regulator 50uA [LT3481IDD#PBF]; 155-7496
0₫
Mã kho: 1557496
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 20 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 1.265 V |
| Minimum Input Voltage | 3.6 V |
| Maximum Input Voltage | 36 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 10 |
| Package Type | DFN |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Length | 3mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 0.7mm |
| Width | 3mm |
| Maximum Operating Temperature | +125 °C |
| Height | 0.7mm |
| Maximum Switching Frequency | 2.8 MHz |
