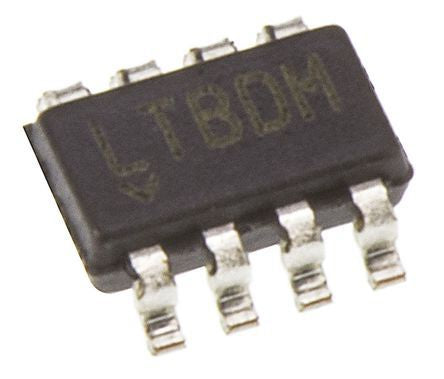

Linear Technology, LT3470ETS8#TRMPBF Step-Down Switching Regulator 200mA Adjustable, 1.25 → 16 V 8-Pin, TSOT-23 [LT3470ETS8#TRMPBF]; 917-3466
0₫
Mã kho: 9173466
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 200mA |
| Maximum Output Voltage | 16 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.25 V |
| Minimum Input Voltage | 4 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Package Type | TSOT-23 |
| Switching Regulator | Yes |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Width | 1.75mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.9mm |
| Length | 2.9mm |
