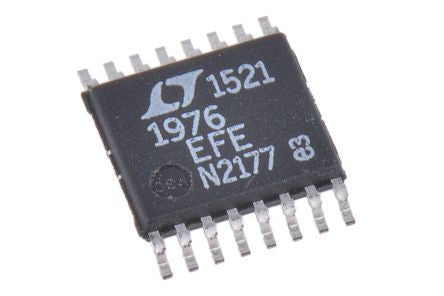

Linear Technology LT1976EFE#PBF, Step Down DC-DC Converter, Adjustable, 1.25 → 35 V, 1.5A 16-Pin, TSSOP [LT1976EFE#PBF]; 761-8585
0₫
Mã kho: 7618585
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 3.5A |
| Maximum Output Voltage | 35 V |
| Minimum Output Voltage | 1.25 V |
| Minimum Input Voltage | 3.3 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 16 |
| Package Type | TSSOP |
| Switching Regulator | Yes |
| Minimum Operating Temperature | -40 °C |
| Width | 4.5mm |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Length | 5.1mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Switching Frequency | 0.23 MHz |
| Height | 0.95mm |
