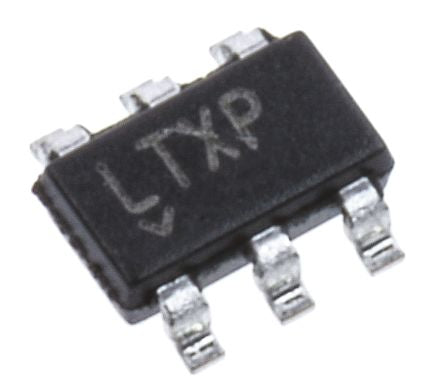

Linear Technology, LT1934ES6#TRMPBF Step-Down Switching Regulator 300mA 6-Pin, TSOT-23 [LT1934ES6#TRMPBF]; 153-3354
0₫
Mã kho: 1533354
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 300mA |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 3.2 V |
| Maximum Input Voltage | 34 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 6 |
| Package Type | TSOT-23 |
| Switching Regulator | Yes |
| Line Regulation | 0.007 %/V |
| Height | 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Length | 2.9mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 2.9 x 1.75 x 0.9mm |
| Width | 1.75mm |
