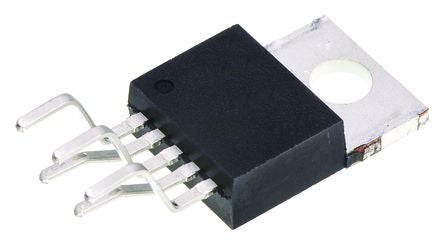

Linear Technology, LT1076HVIT#PBF Step-Down Switching Regulator 2A Adjustable 5-Pin, TO-220 [LT1076HVIT#PBF]; 158-0376
0₫
Mã kho: 1580376
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 50 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 2.5 V |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Length | 10.54mm |
| Maximum Switching Frequency | 125 kHz |
| Dimensions | 10.54 x 15.74 x 4.57mm |
| Minimum Operating Temperature | -40 °C |
| Width | 15.74mm |
| Height | 4.57mm |
| Maximum Operating Temperature | +85 °C |
