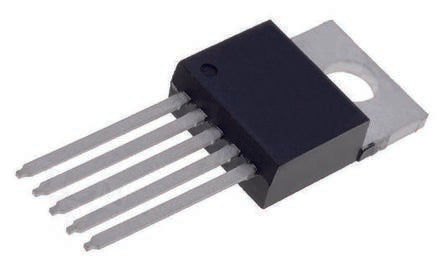

Linear Technology, LT1076CT-5#PBF Switching Regulator 2A 5-Pin, TO-220 [LT1076CT-5#PBF]; 779-9003
0₫
Mã kho: 7799003
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 5 V |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 8 V |
| Maximum Input Voltage | 45 V |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | TO-220 |
| Switching Regulator | Yes |
| Line Regulation | 0.1 %/V |
| Length | 10.54mm |
| Maximum Switching Frequency | 125 kHz |
| Dimensions | 10.541 x 4.572 x 15.748mm |
| Width | 4.572mm |
| Height | 15.748mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
