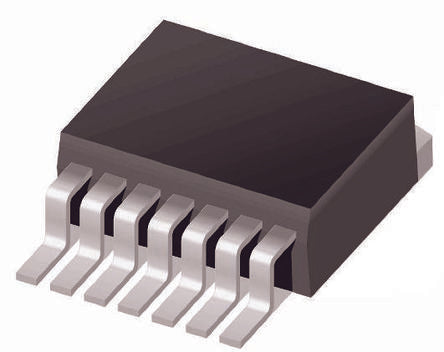

Linear Technology, LT1076CR#PBF Step-Down Switching Regulator 10A Adjustable, 2.5 → 50 V 8-Pin, D2PAK [LT1076CR#PBF]; 545-5225
0₫
Mã kho: 5455225
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 10A |
| Maximum Output Voltage | 50 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 2.5 V |
| Minimum Input Voltage | 7.3 V |
| Maximum Input Voltage | 45 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Package Type | D2PAK |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Dimensions | 10.54 x 9.4 x 4.57mm |
| Height | 4.57mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Switching Frequency | 110 kHz |
| Length | 10.54mm |
| Maximum Operating Temperature | +70 °C |
| Width | 9.4mm |
