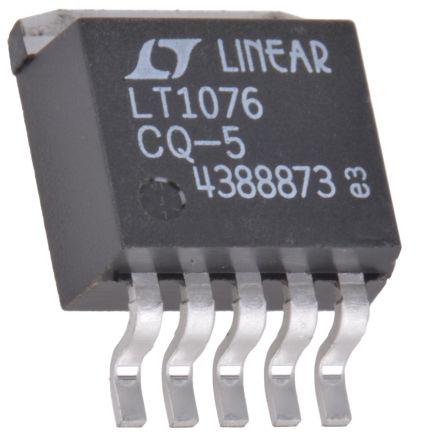

Linear Technology, LT1076CQ-5#PBF Switching Regulator 10A 5-Pin, DD [LT1076CQ-5#PBF]; 822-6575
0₫
Mã kho: 8226575
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 10A |
| Maximum Output Voltage | 5 V |
| Regulator Function | Step Down |
| Minimum Input Voltage | 10 V |
| Maximum Input Voltage | 60 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Package Type | DD |
| Switching Regulator | Yes |
| Line Regulation | 0.1 %/V |
| Maximum Operating Temperature | +70 °C |
| Height | 4.572mm |
| Width | 9.398mm |
| Dimensions | 10.541 x 9.398 x 4.572mm |
| Maximum Switching Frequency | 125 kHz |
| Length | 10.54mm |
| Minimum Operating Temperature | 0 °C |
