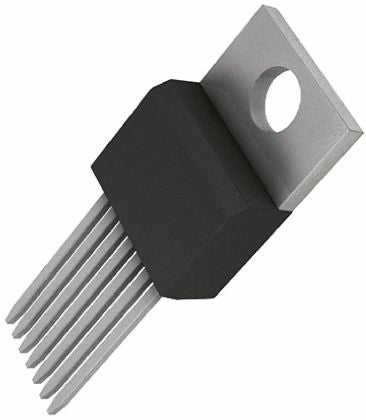

Linear Technology, LT1074HVCT7#PBF Switching Regulator 5A 7-Pin, TO-220 [LT1074HVCT7#PBF]; 154-7687
0₫
Mã kho: 1547687
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Output Current | 5A |
Maximum Output Voltage | 50 V |
Regulator Function | Buck Controller |
Minimum Output Voltage | 2.5 V |
Minimum Input Voltage | 8 V |
Maximum Input Voltage | 64 V |
Mounting Type | Through Hole |
Number of Outputs | 1 |
Pin Count | 7 |
Package Type | TO-220 |
Switching Regulator | Yes |
Line Regulation | 0.1 %/V |
Width | 4.572mm |
Minimum Operating Temperature | -40 °C |
Dimensions | 10.541 x 4.572 x 15.748mm |
Maximum Switching Frequency | 125 kHz |
Maximum Operating Temperature | +125 °C |
Length | 10.54mm |
Height | 15.748mm |
