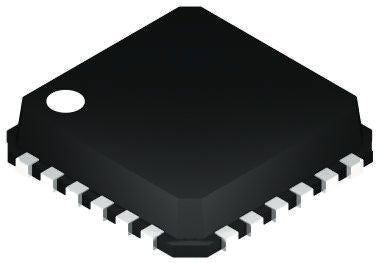

Analog Devices, ADP5024ACPZ-R2 Switching Regulator Dual 300mA Adjustable 24-Pin, LFCSP [ADP5024ACPZ-R2]; 159-9360
0₫
Mã kho: 1599360
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Output Current | 300mA |
| Maximum Output Voltage | 3.8 V |
| Regulator Function | Boost/Buck Controller, Inverting |
| Minimum Output Voltage | 0.8 V |
| Minimum Input Voltage | 2.3 V |
| Maximum Input Voltage | 5.5 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Pin Count | 24 |
| Package Type | LFCSP |
| Switching Regulator | Yes |
| Line Regulation | 0.03 %/V |
| Load Regulation | 0.003 %/mA |
| Maximum Switching Frequency | 10 kHz |
| Length | 4.1mm |
| Dimensions | 4.1 x 4.1 x 0.75mm |
| Width | 4.1mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Height | 0.75mm |
