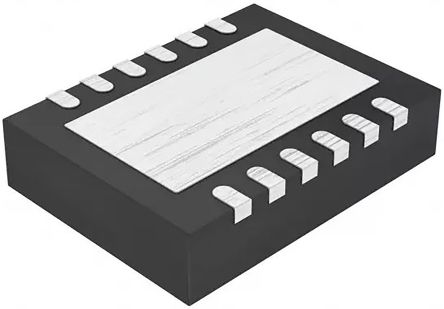

Texas Instruments TPS63020QDSJTQ1, Boost/Buck Converter Boost, Buck 2 (Boost) A, 3 (Step Down) A, Adjustable [TPS63020QDSJTQ1]; 133-0761
0₫
Mã kho: 1330761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Boost, Buck |
| Maximum Output Current | 2 (Boost) A, 3 (Step Down) A |
| Number of Outputs | 1 |
| Line Regulation | 0.005 |
| Load Regulation | 0.005 |
| Mounting Type | Surface Mount |
| Package Type | VSON |
| Pin Count | 14 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 2.5 MHz |
| Switching Regulator | Yes |
| Dimensions | 4.15 x 3.15 x 0.95mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +125 °C |
| Length | 4.15mm |
| Maximum Output Voltage | 5.5 V |
| Minimum Output Voltage | 1.2 V |
| Maximum Input Voltage | 5.5 V |
| Width | 3.15mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 1.8 V |
