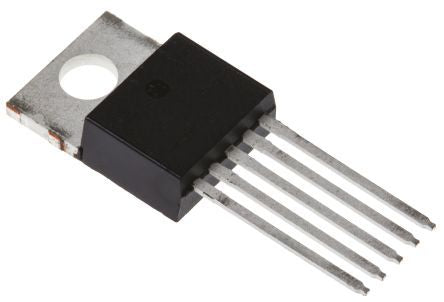

ON Semiconductor, LM2575T-12G [LM2575T-12G]; 186-9708
0₫
Mã kho: 1869708
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Regulator Function | Step Down |
| Maximum Output Current | 1A |
| Number of Outputs | 1 |
| Mounting Type | Through Hole |
| Package Type | TO-220 |
| Pin Count | 5 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 63 kHz |
| Switching Regulator | Yes |
| Efficiency | 0.75 |
| Dimensions | 10.54 x 4.57 x 15.57mm |
| Height | 15.57mm |
| Minimum Output Voltage | 3.23 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Input Voltage | 45 V |
| Maximum Output Voltage | 3.36 V |
| Width | 4.57mm |
| Length | 10.54mm |
| Maximum Operating Temperature | +125 °C |
