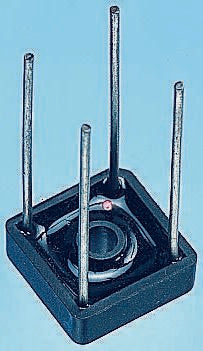

Vishay VS-KBPC602PBF, Bridge Rectifier, 6A 200V, 4-Pin D 72 [VS-KBPC602PBF]; 708-2719
by Vishay
0₫
Mã kho: 7082719
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 6A |
| Peak Reverse Repetitive Voltage | 200V |
| Mounting Type | Through Hole |
| Package Type | D 72 |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 137A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.2V |
| Peak Reverse Current | 10µA |
| Length | 15.75mm |
| Dimensions | 15.75 x 15.75 x 5.33mm |
| Height | 5.33mm |
| Width | 15.75mm |
