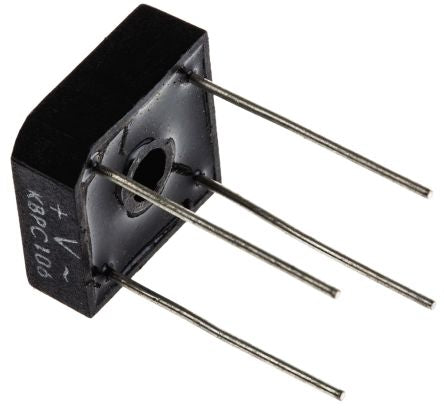

Vishay VS-KBPC106, Bridge Rectifier, 3A 600V, 4-Pin D 46 [VS-KBPC106]; 169-5953
by Vishay
0₫
Mã kho: 1695953
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 3A |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | D 46 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 55A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 10µA |
| Length | 16.7mm |
| Dimensions | 16.7 x 16.7 x 6.35mm |
| Height | 6.35mm |
| Width | 16.7mm |
