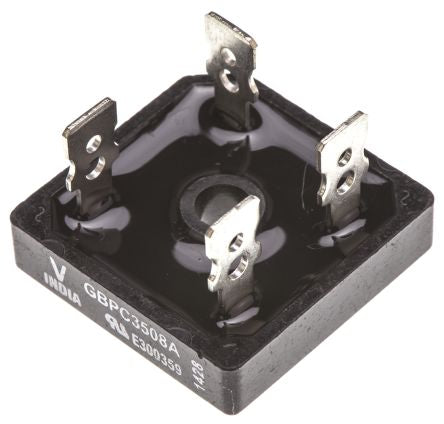

Vishay VS-GBPC3508A, Bridge Rectifier, 35A 800V, 4-Pin GBPC-A [VS-GBPC3508A]; 178-0912
by Vishay
0₫
Mã kho: 1780912
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Screw Mount |
| Package Type | GBPC-A |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 500A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 5µA |
| Length | 28.6mm |
| Width | 28.6mm |
| Height | 7.7mm |
| Dimensions | 28.6 x 28.6 x 7.7mm |
