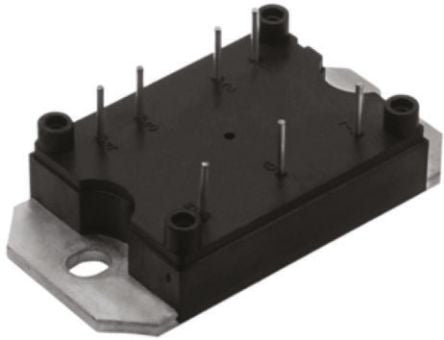

Vishay VS-70MT160PBPBF, 3-phase Bridge Rectifier, 75A 1600V, 8-Pin MT PB [VS-70MT160PBPBF]; 145-1929
by Vishay
0₫
Mã kho: 1451929
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 75A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | MT PB |
| Pin Count | 8 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 398A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.45V |
| Peak Reverse Current | 5mA |
| Length | 63.5mm |
| Dimensions | 63.5 x 32.5 x 16mm |
| Height | 16mm |
| Width | 32.5mm |
