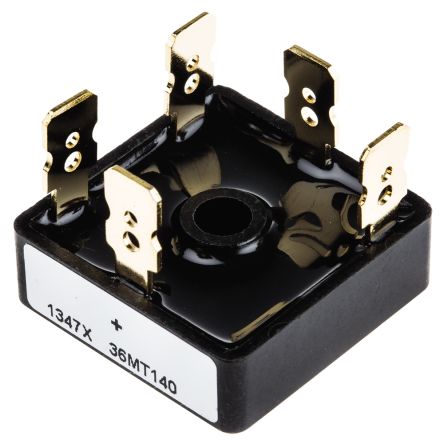

Vishay VS-36MT140, 3-phase Bridge Rectifier, 35A 1400V, 5-Pin D 63 [VS-36MT140]; 395-3222
by Vishay
0₫
Mã kho: 3953222
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 35A |
| Peak Reverse Repetitive Voltage | 1400V |
| Mounting Type | Through Hole |
| Package Type | D 63 |
| Pin Count | 5 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 500A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.19V |
| Peak Reverse Current | 200µA |
| Length | 28.5mm |
| Width | 28.5mm |
| Height | 10mm |
| Dimensions | 28.5 x 28.5 x 10mm |
