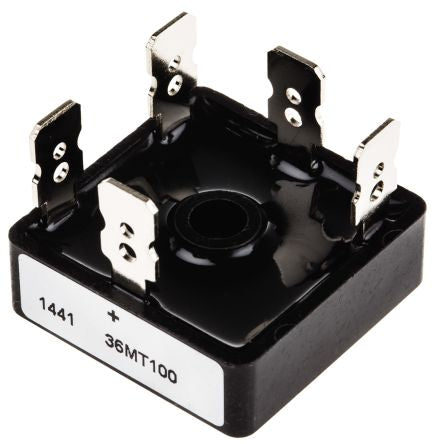

Vishay VS-36MT100, 3-phase Bridge Rectifier, 35A 1000V, 5-Pin D 63 [VS-36MT100]; 395-3216
by Vishay
0₫
Mã kho: 3953216
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Three Phase |
Peak Average Forward Current | 35A |
Peak Reverse Repetitive Voltage | 1000V |
Mounting Type | Through Hole |
Package Type | D 63 |
Pin Count | 5 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 500A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.19V |
Peak Reverse Current | 200µA |
Length | 28.5mm |
Height | 10mm |
Dimensions | 28.5 x 28.5 x 10mm |
Width | 28.5mm |
