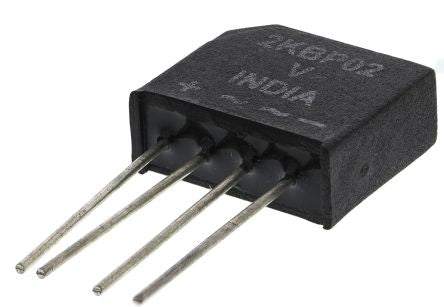

Vishay VS-2KBP02, Bridge Rectifier, 2A 200V, 4-Pin D 44 [VS-2KBP02]; 395-2954
by Vishay
0₫
Mã kho: 3952954
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 2A |
Peak Reverse Repetitive Voltage | 200V |
Mounting Type | Through Hole |
Package Type | D 44 |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 63A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -40 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 10µA |
Length | 17.5mm |
Width | 6.8mm |
Dimensions | 17.5 x 6.8 x 15mm |
Height | 15mm |
