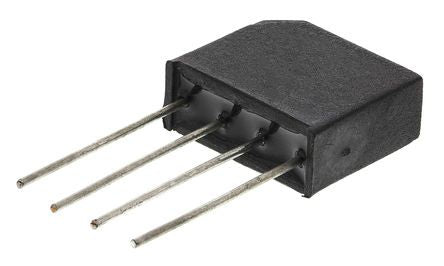

Vishay VS-2KBB10R, Bridge Rectifier, 1.9A 100V, 4-Pin D 37 [VS-2KBB10R]; 169-5905
by Vishay
0₫
Mã kho: 1695905
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 1.9A |
Peak Reverse Repetitive Voltage | 100V |
Mounting Type | Through Hole |
Package Type | D 37 |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 52A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -40 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 10µA |
Length | 17.5mm |
Dimensions | 17.5 x 6.5 x 15mm |
Width | 6.5mm |
Height | 15mm |
