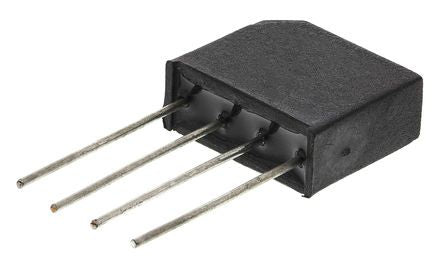

Vishay VS-2KBB100R, Bridge Rectifier, 1.9A 1000V, 4-Pin D 37 [VS-2KBB100R]; 169-5904
by Vishay
0₫
Mã kho: 1695904
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 1.9A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | D 37 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 52A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 10µA |
| Length | 17.5mm |
| Width | 6.5mm |
| Dimensions | 17.5 x 6.5 x 15mm |
| Height | 15mm |
