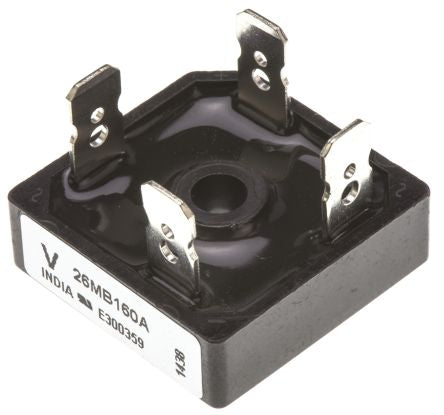

Vishay VS-26MB160A, Bridge Rectifier, 25A 1600V, 4-Pin D 34 [VS-26MB160A]; 165-2538
by Vishay
0₫
Mã kho: 1652538
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 25A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Screw Mount |
| Package Type | D 34 |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 420A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.25V |
| Peak Reverse Current | 10µA |
| Length | 28.5mm |
| Dimensions | 28.5 x 28.5 x 9.8mm |
| Height | 9.8mm |
| Width | 28.5mm |
