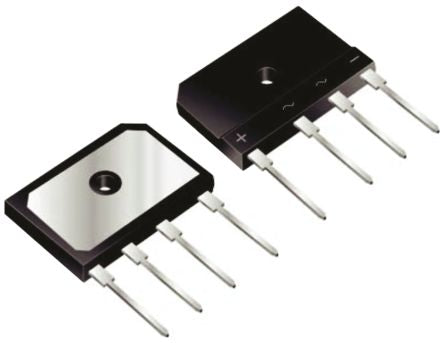

Vishay PB4006-E3/45, Bridge Rectifier, 40A 600V, 4-Pin PB [PB4006-E3/45]; 145-1681
by Vishay
0₫
Mã kho: 1451681
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 40A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | PB |
| Pin Count | 4 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Length | 30.3mm |
| Dimensions | 30.3 x 5.1 x 20.3mm |
| Height | 20.3mm |
| Width | 5.1mm |
