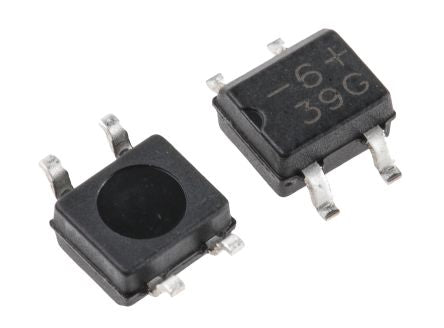

Vishay MB6S-E3, Bridge Rectifier, 800mA 600V, 4-Pin TO-269AA [MB6S-E3]; 165-2347
by Vishay
0₫
Mã kho: 1652347
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 800mA |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Surface Mount |
Package Type | TO-269AA |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 35A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1V |
Peak Reverse Current | 5µA |
Length | 4.95mm |
Width | 4.1mm |
Dimensions | 4.95 x 4.1 x 2.7mm |
Height | 2.7mm |
