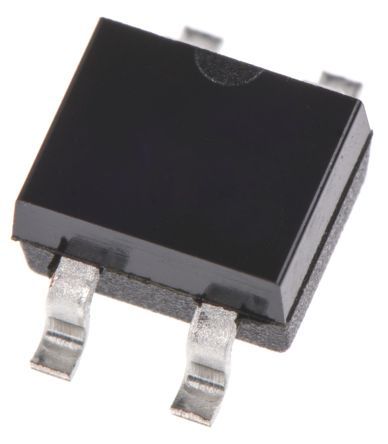

Vishay MB4S-E3/80, Quad Bridge Rectifier, 35A 400V, 4-Pin TO-269AA [MB4S-E3/80]; 180-7219
by Vishay
0₫
Mã kho: 1807219
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 400V |
| Mounting Type | Surface Mount |
| Package Type | TO-269AA |
| Pin Count | 4 |
| Configuration | Quad |
| Peak Non-Repetitive Forward Surge Current | 450A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 100µA |
| Length | 4.95mm |
| Dimensions | 4.95 x 4.1 x 2.7mm |
| Height | 2.7mm |
| Width | 4.1mm |
| Junction Capacitance | 13pF |
